What's the Difference Between Prototype PCB Assembly and Low Volume PCB Assembly ?

You’ve designed your circuit. It looks great on the screen. Now you need physical boards. But here’s the question that trips up many hardware founders: do you need a prototype or a low-volume run? They sound similar, but they serve very different purposes. What's the difference between prototype PCB assembly and low volume PCB assembly? It’s not just about the number of boards; it’s about the stage of your product’s life cycle.

Mixing these two up can cost you time and money. If you order a low-volume run when you still need to tweak the design, you’re stuck with expensive inventory. If you order prototypes when you’re ready for market testing, you might lack the consistency and documentation needed for serious buyers. Let’s break it down, based on real-world manufacturing experience.

Defining the Two Stages of Production

To understand the difference, we first need to define what each term actually means in the context of electronics manufacturing.

Prototype PCB Assembly: The "Does It Work?" Phase

Prototype assembly is all about speed and verification. Typically, this involves producing 1 to 5 units. The goal is simple: verify that the schematic and layout work in the real world. Did you connect the right pins? Does the power supply regulate correctly? Does the microcontroller boot up?

Prototypes are often assembled using quick-turn services. Sometimes, components are hand-soldered or placed using less automated processes to save on setup time. The focus is on getting a working board into your hands as fast as possible, often within 24 to 72 hours. Cost per unit is high, but total cost is low because the quantity is tiny.

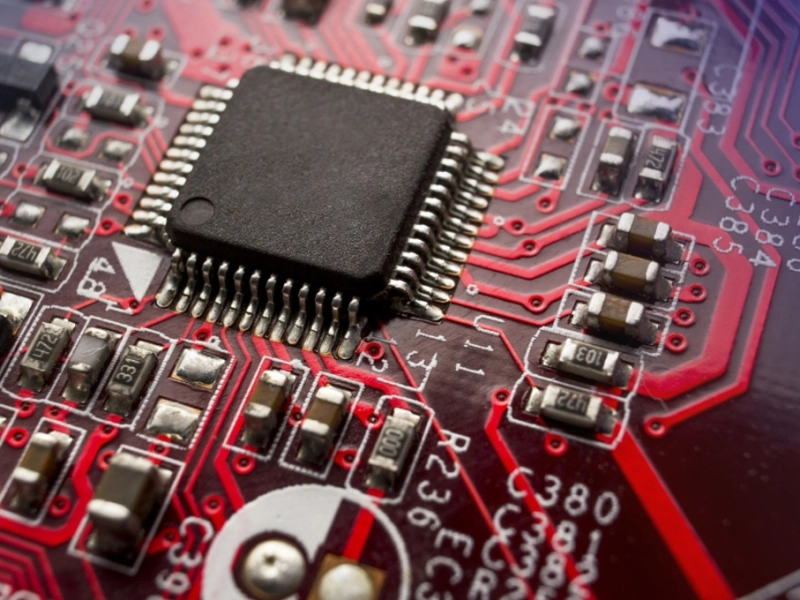

Low Volume PCB Assembly: The "Will It Sell?" Phase

Low volume assembly, on the other hand, is about production readiness. This stage usually involves 10 to 500 units (sometimes up to 1,000). These aren’t just rough drafts; they are intended to be sold, distributed, or used in field trials. The assembly process mimics mass production, using automated pick-and-place machines, reflow ovens, and rigorous quality control.

The goal here is to validate the manufacturing process, test supply chain logistics, and gather user feedback on a final-quality product. You’re not just checking if it works; you’re checking if it can be made consistently and reliably.

Key Differences: Process, Cost, and Quality

While both stages involve putting components on a board, the execution differs significantly. Here’s where the rubber meets the road.

1. Manufacturing Process and Automation

In prototype assembly, speed is king. Manufacturers might skip certain steps to save time. For example, they might not create a custom stencil for solder paste if the board is simple enough for manual application. Component sourcing might be done from local distributors rather than bulk reels, leading to higher component costs but faster availability.

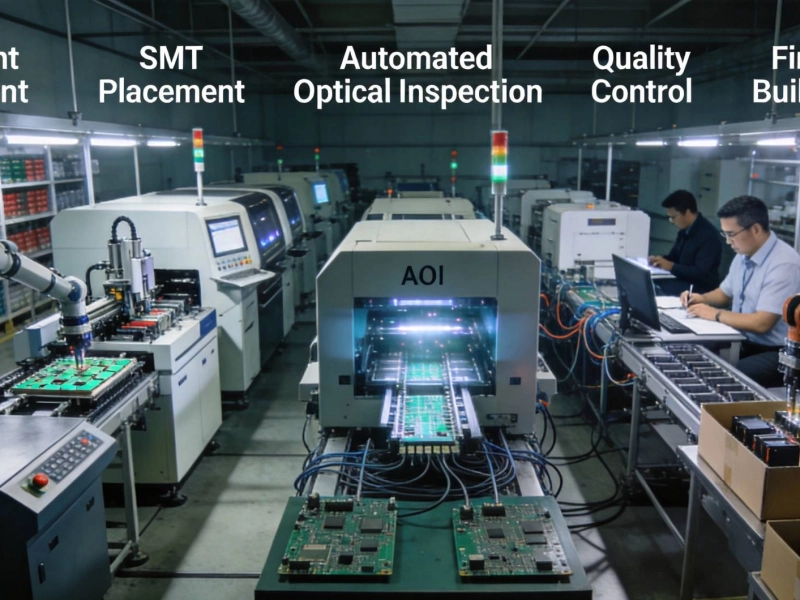

In low volume assembly, the process is standardized. Custom stencils are always used. Components are sourced from authorized distributors to ensure authenticity and traceability. The boards go through automated optical inspection (AOI) and often X-ray inspection for BGA components. This ensures that every unit in the batch is identical, which is crucial for brand reputation.

2. Cost Structure: Unit Price vs. Total Investment

This is where it gets tricky. The unit cost of a prototype is astronomically higher than a low-volume unit. You might pay $500 for a single prototype board due to setup fees and expedited shipping. However, the total investment is low ($500).

In low volume, the unit cost drops significantly—maybe to $50 or $100 per board—because setup costs are amortized over more units. But the total investment is higher ($5,000 to $50,000). Understanding this distinction helps you budget correctly. Don’t look at just the unit price; look at the cash flow impact.

3. Quality Control and Documentation

Prototypes often come with minimal documentation. You get the boards, and maybe a basic test report. Low volume assemblies, however, require full documentation. This includes:

• First Article Inspection (FAI): A detailed report verifying the first board off the line against the bill of materials (BOM).
• Traceability: Records of where every component came from, crucial for medical or automotive industries.
• Consistency Reports: Data showing that all units meet the same electrical and mechanical standards.

If you’re selling to enterprise clients, they will ask for this documentation. Prototypes won’t cut it.

When to Use Prototype vs. Low Volume Assembly

Choosing the right stage depends on your current goals. Here’s a practical guide to help you decide.

Choose Prototype Assembly When:

1. You’re Testing Functionality: You need to verify that the circuit design works before committing to production.
2. You Expect Design Changes: If you think you’ll need to swap out components or change the layout, stick to prototypes. It’s cheaper to scrap 5 boards than 500.
3. You Need Speed: You have a demo next week and just need something that turns on.
4. Budget is Tight: You can’t afford to tie up capital in inventory yet.

Choose Low Volume Assembly When:

1. The Design is Frozen: You’re confident in the layout and component selection. No more major changes.
2. You’re Launching to Market: You need units for crowdfunding backers, early adopters, or beta testers who expect a polished product.
3. You Need Regulatory Approval: FCC, CE, or UL testing often requires production-intent units, not hand-soldered prototypes.
4. You’re Validating Supply Chain: You want to ensure your manufacturer can source components reliably and meet quality standards.

Real-World Case Study: The Cost of Confusion

Let’s look at a common scenario. "GreenTech," a startup developing a smart irrigation controller, rushed into low volume production too early. They ordered 200 units before fully testing the Wi-Fi module’s performance in humid environments.

When they deployed the units in the field, 30% of them failed due to moisture ingress—a problem that could have been caught with better enclosure testing during the prototype phase. Because they had already paid for 200 assembled units, they faced a $15,000 loss in rework and replacements. If they had stuck to prototype assembly for initial field tests, they would have only lost $1,000 worth of units.

This case highlights why understanding what's the difference between prototype PCB assembly and low volume PCB assembly is critical. It’s not just a technical distinction; it’s a business risk management strategy.

Common Pitfalls to Avoid

Even with the right knowledge, mistakes happen. Here are a few traps to watch out for.

Pitfall 1: Using Prototypes for Certification Testing
Regulatory bodies like the FCC require tests on production-intent units. Hand-soldered prototypes may not pass due to inconsistencies in soldering or component placement. Always use low-volume assemblies for formal certification.

Pitfall 2: Ignoring DFM in Prototypes
Just because it’s a prototype doesn’t mean you should ignore Design for Manufacturability (DFM). If your prototype works but is impossible to assemble efficiently, you’ll face huge headaches when you move to low volume. Get a DFM review early, even for prototypes.

Pitfall 3: Overlooking Lead Times
Prototype services are fast, but low-volume runs take longer due to component sourcing and queue times. Plan your timeline accordingly. Don’t assume low volume will be as quick as a 24-hour prototype turn.

Conclusion: Choosing the Right Path for Your Product

So, what's the difference between prototype PCB assembly and low volume PCB assembly? Prototypes are for learning and validating design; low volume is for validating business and manufacturing. Both are essential steps in the journey from idea to product.

By choosing the right stage at the right time, you can minimize risk, optimize costs, and bring a high-quality product to market. Don’t rush into low volume before you’re ready, but don’t stay in prototype mode forever. Know the difference, and use it to your advantage.

Frequently Asked Questions (FAQ)

Can I use prototype boards for selling to customers?

Technically yes, but it’s not recommended. Prototypes may lack the consistency, documentation, and reliability of production units. Selling them could damage your brand reputation if failures occur.

How many units define the transition from prototype to low volume?

There’s no hard rule, but generally, 1-5 units are prototypes, 10-500 are low volume, and 1,000+ is mid-to-high volume. The transition depends more on intent (testing vs. selling) than exact numbers.

Is low volume assembly more expensive than prototyping?

The total cost is higher, but the unit cost is lower. Prototyping has high unit costs due to setup fees spread over few units. Low volume spreads these fees over more units, reducing the price per board.

Do I need a new design file for low volume assembly?

No, you use the same Gerber files and BOM. However, you should ensure your BOM is optimized for production, with available components and correct part numbers, before starting low volume assembly.
